Amplifiers and Audio Effects
☰
Test guitar sound
In the following section, I prepared 9-second audio samples using LTspice simulations.
Your browser does not support the audio element.

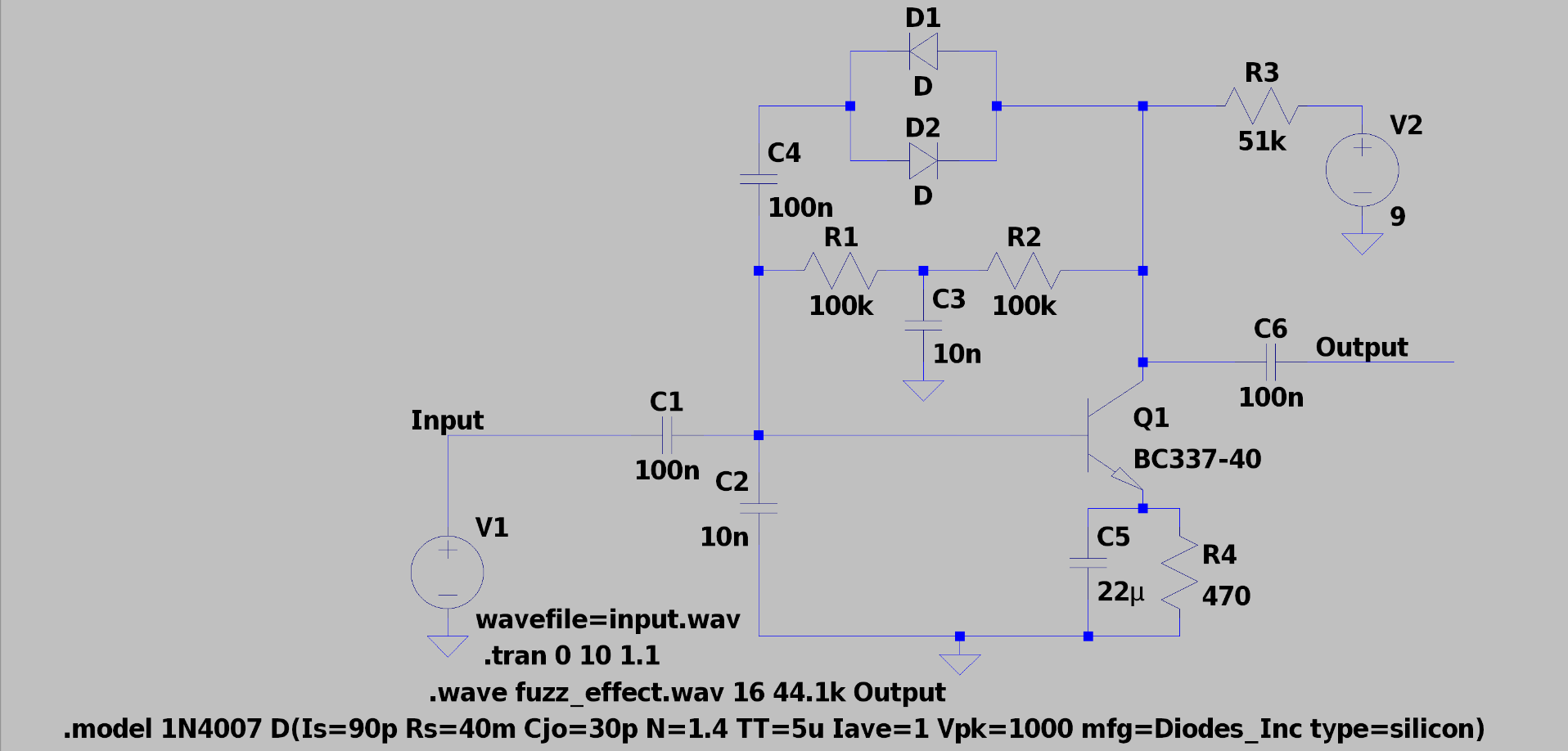

Fuzz effect
Your browser does not support the audio element.

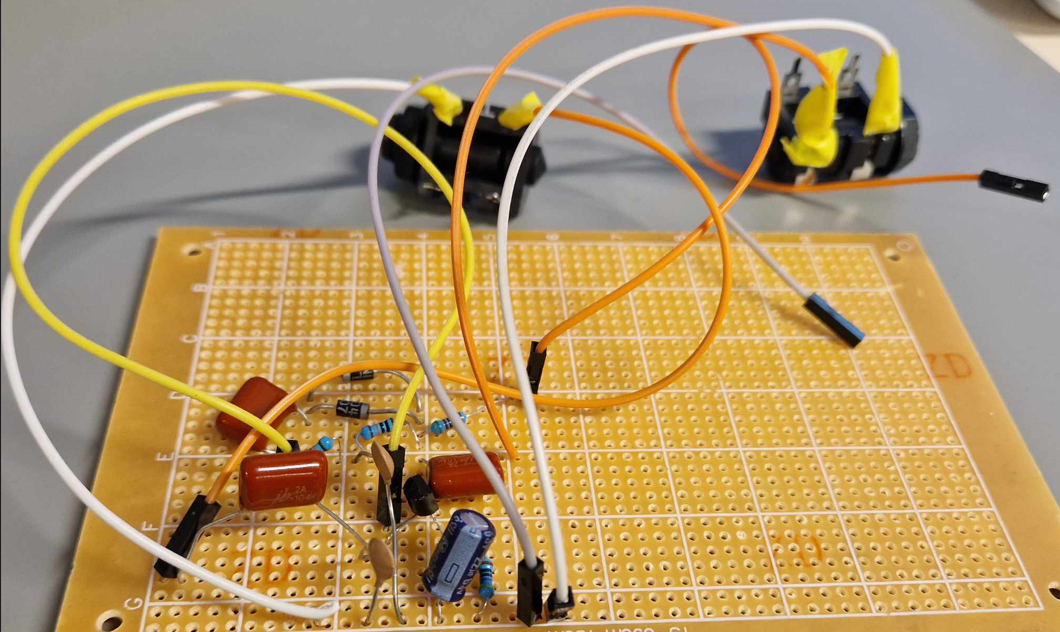

Fuzz effect built using real components
Your browser does not support the audio element.

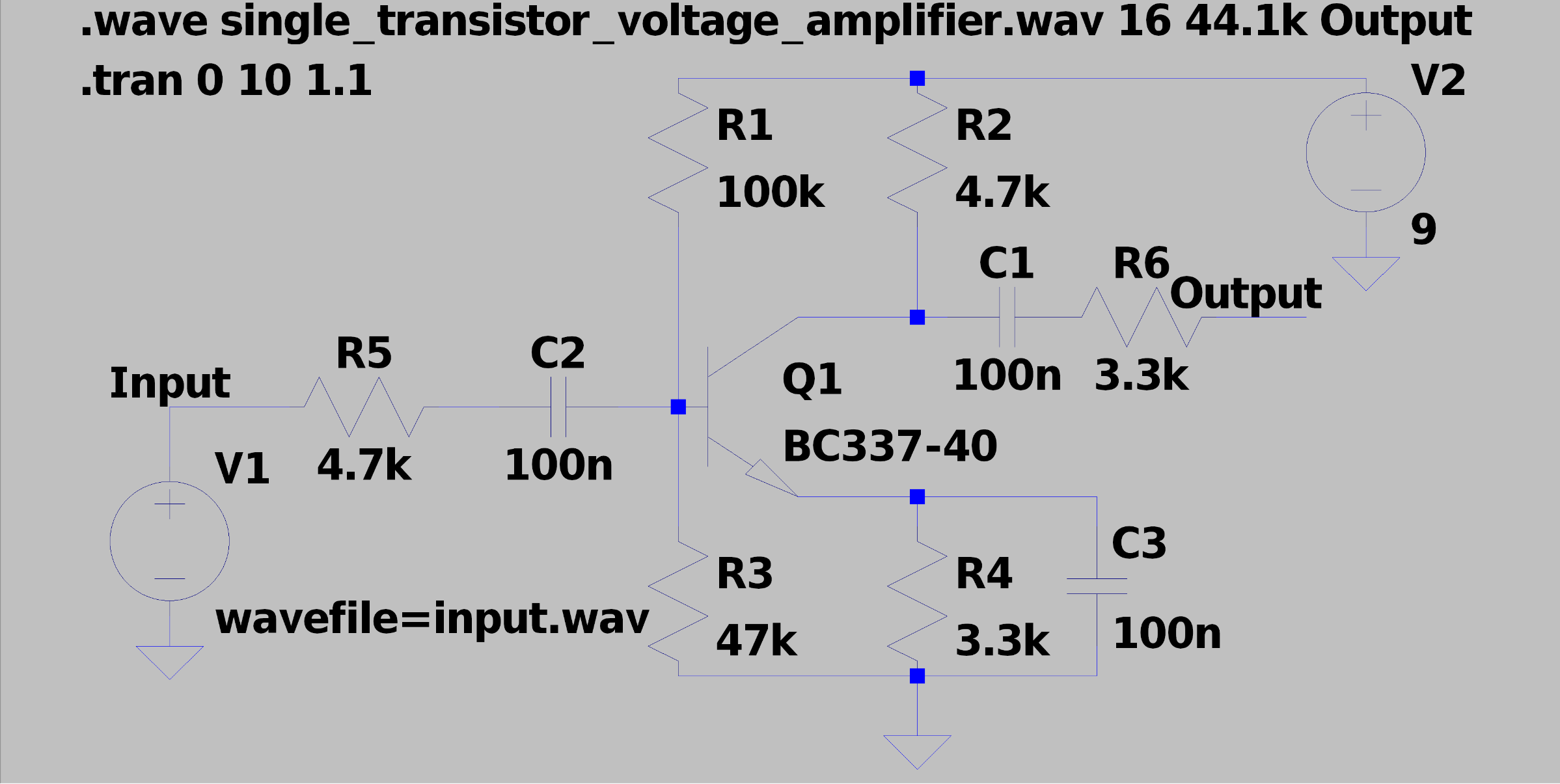

Single-transistor voltage amplifier
Your browser does not support the audio element.

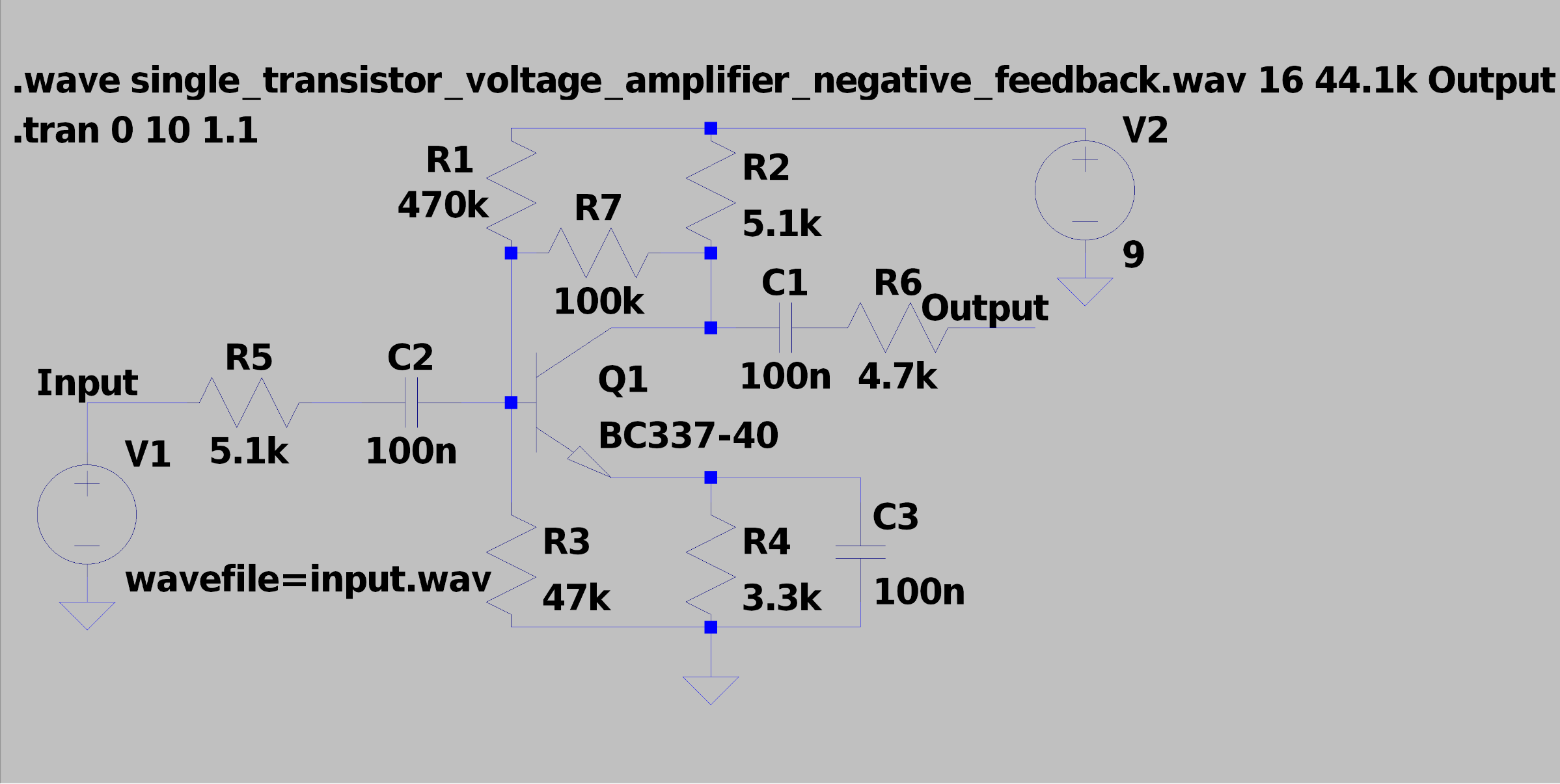

Single-transistor voltage amplifier with negative parallel voltage feedback
Your browser does not support the audio element.

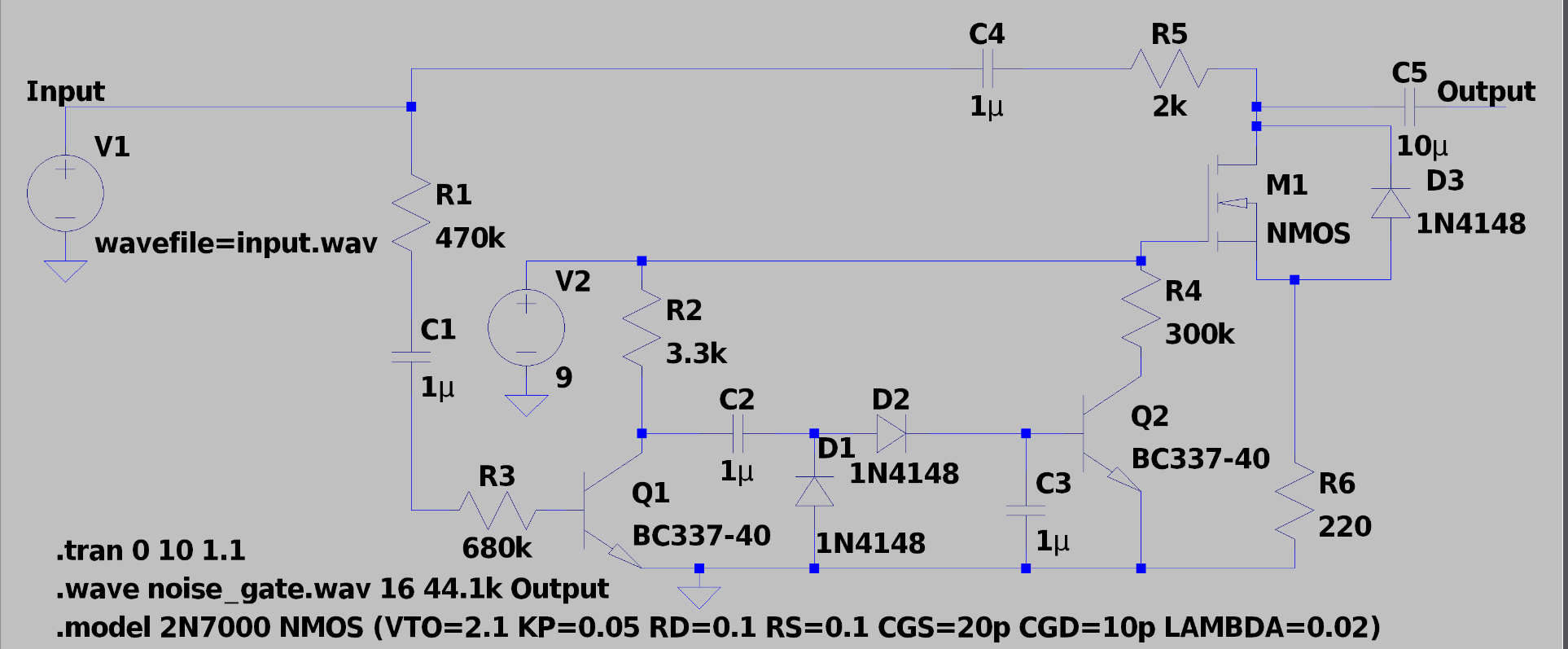

Noise gate
Your browser does not support the audio element.

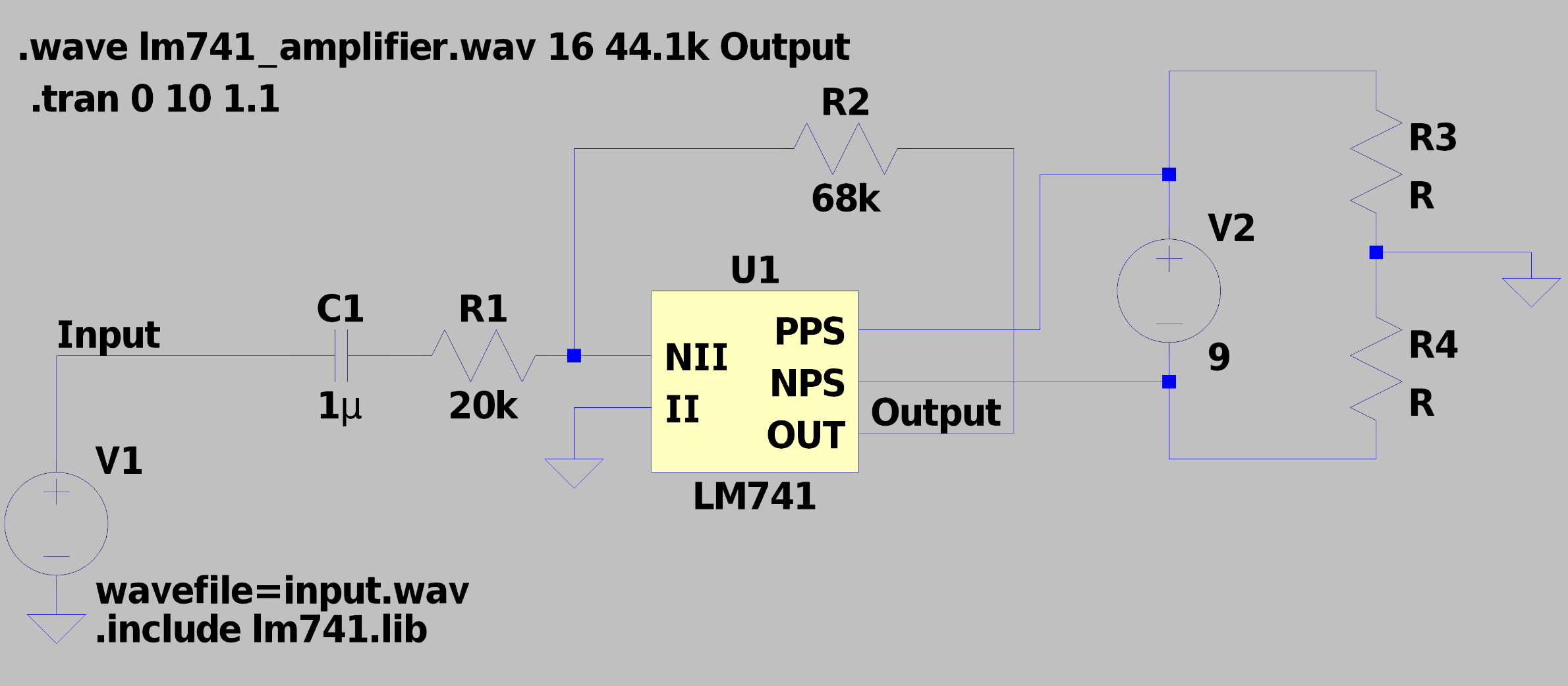

Integrated circuit amplifier
Your browser does not support the audio element.
